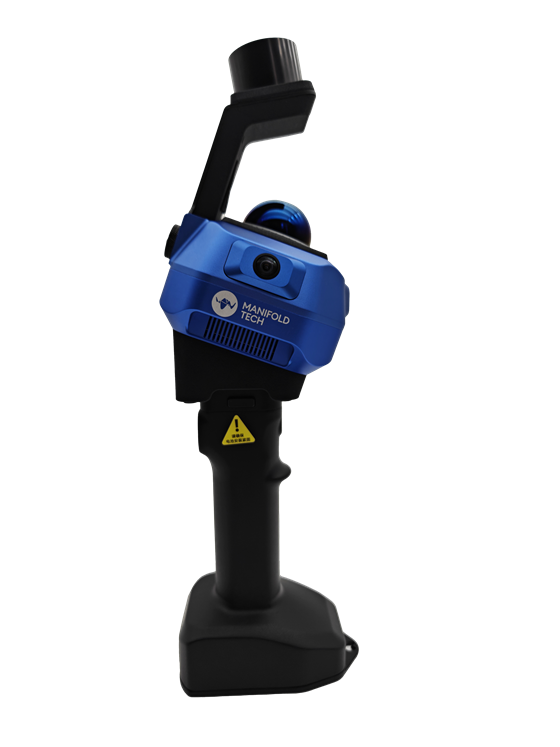

Side view

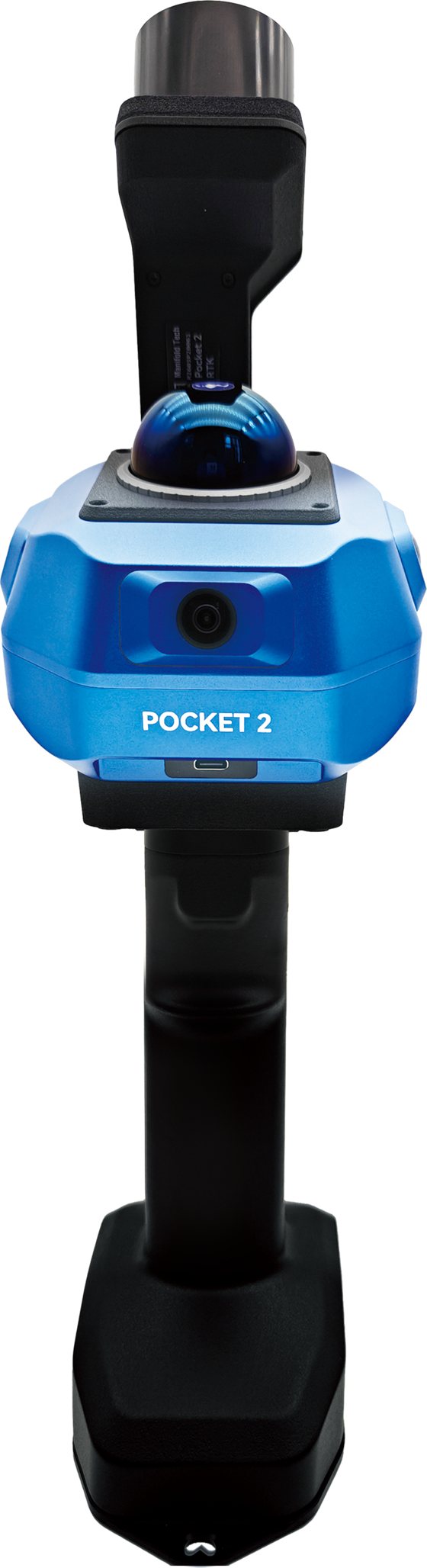

Manifold Pocket 2 RTK 512GB
Smart handheld scanner of a new generation
We're excited to announce the official nationwide launch of the Manifold Pocket 2 RTK. It's a new-generation handheld SLAM scanner that frees your hands for every kind of capture (surveying, architectural, construction, real estate). With a simple walk around the area of interest, you can get a complete 3D capture in minutes.
€3,999 incl. RTK module, excl. VAT
Available now
Algorithm
MindSLAM®
Density
200,000 pts/s
Battery life
2 hours
Software
Android·iOS·Win·Linux
Product photos

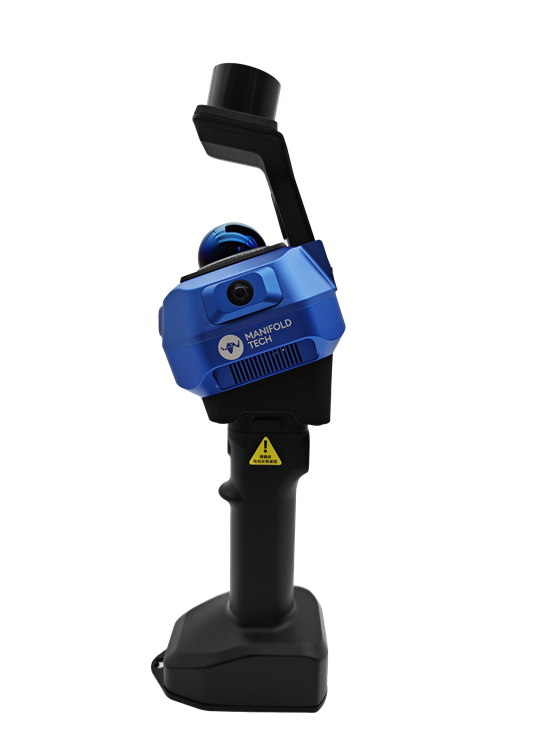

Right view

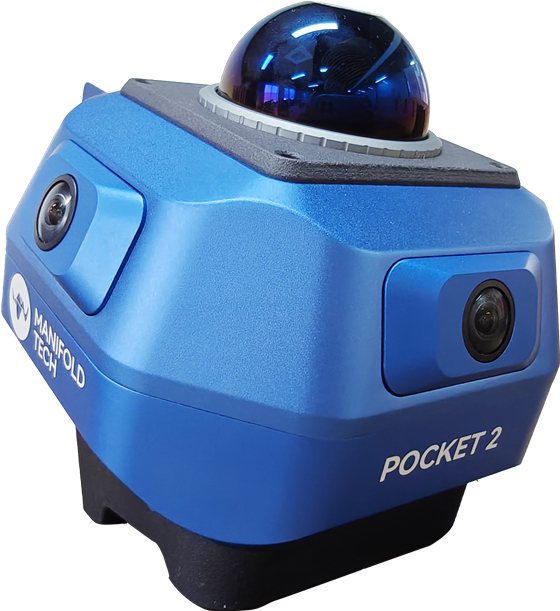

LiDAR head & cameras
01
Power on – connect
Turn on the device and connect it to your phone.
02
Scan
Walk the space.
03
Process
Upload the data to the cloud or your computer and run the processing.
The advanced MindSLAM® algorithm was developed exclusively by Manifold Tech. It fuses data from the sensors (LiDAR, IMU, GNSS, camera) simultaneously and reconciles the measurements, delivering a real-time, high-accuracy colorized point cloud.
A typical SLAM capture is completed in a fraction of the time compared to GPS, a total station or a tape measure. There's no need to revisit the site, since the point cloud keeps every detail. It also stores photos and video from the three cameras.
The device ships with free mobile software (Android-iOS). Field data processing happens on your computer (Windows-Linux) in the powerful MindCloud Studio, or online on a MindCloudX.AI cloud PC — with the ability to share your projects.
Technical specifications
| Dimensions | 114 × 114 × 118 mm |
| Weight | 1,275 g |
| Ingress protection | IP56 |
| Operating temperature | -10 °C to 40 °C |
| Storage | SSD 512 GB |
| Data interface | USB 3.0 |
| Battery | 4000 mAh · up to 2 hours |
| Camera system | 3 × 2 MP global shutter RGB |
| Software | Android-iOS-Windows-Linux-Web |
| Fixed-point capture | Supported |
| Points per second | 200,000 |
| Point spacing | ≤ 1 cm |
| Laser channels | 40 channels |
| Laser wavelength | 905 nm |
| LiDAR field of view | Horizontal 360° · Vertical 59° |
| LiDAR mounting angle | 15° toward the ground |
| Measurement range | 40 m to 70 m |
| Absolute positional accuracy | < 5 cm, ~3 cm |
| RTK receiver | BDS B1I, B2I, B3I, B1C, B2a, B2b · GPS L1C/A, L2C, L2P(Y) · GLONASS G1, G2 · Galileo E1, E5a, E5b, E6 · QZSS L1C/A, L2C, L5 |
Specifications from the manufacturer, Manifold Tech.

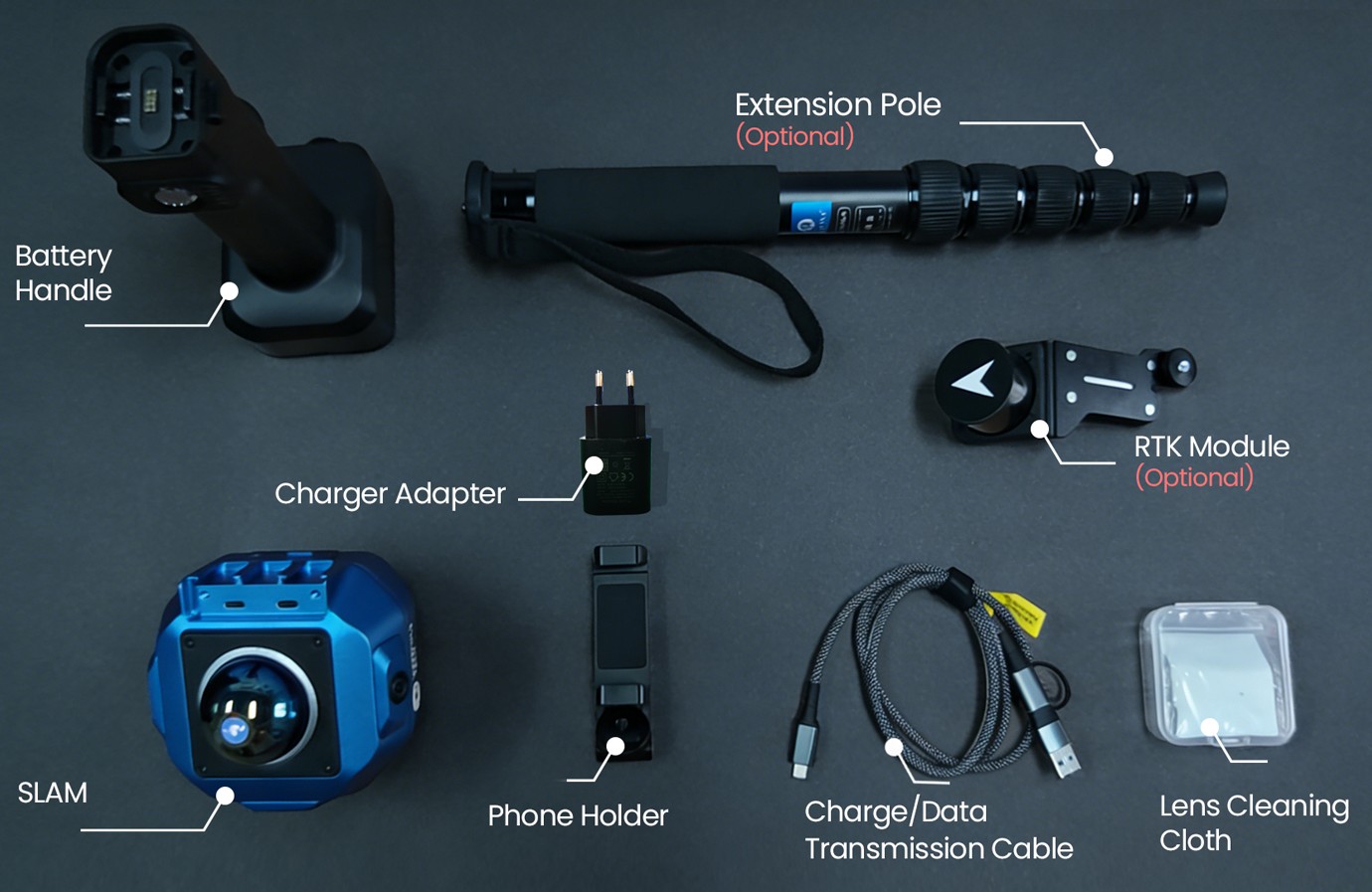

What's included
- Pocket 2 main unit
- Built-in RTK module
- Phone mount
- MindCloud software
- Handle with battery and charger
- Lens cleaning cloth
- Carrying case
Useful links
-
Product page (manufacturer)
Official Pocket 2 page, Manifold Tech.
-
Software & manuals
Official downloads page from the manufacturer.
-
Sample data — Point Cloud
Scan of the Old Courthouse of Corfu, in an online viewer.
-
Sample data — 3DGS
The same scan as a Gaussian Splatting render.
Video & user guide
Official demo video from the manufacturer, Manifold Tech — scanning on the move, live point-cloud preview and real-time colorization.
Quick start guide
- Attach the battery to the handle and power on the device.
- Connect your phone to the device via the MindCloud app.
- Start scanning on foot — no stops, no GNSS required.
- Watch the point cloud build and color in real time on screen.
- One-tap upload to MindCloud, then continue processing.
Pocket 2 outdoors — turning the real world into Gaussian Splats
Pocket 2 in extreme lighting — scanning Duke Chapel
Pocket 2 — independent review
Frequently asked questions
When do I receive the device?
The Pocket 2 is sold to order. We'll let you know the delivery time once we receive your request.
How much does it cost?
€3,999 (excl. VAT), including the built-in RTK module. Send a quote request for final invoicing.
How does ordering work?
There's no online payment. You send a request, receive a written quote, and then an invoice.
Do I need your RTK network?
No. The Pocket 2 scans without GNSS.
Can I try it out first?
Yes, locally only in Corfu or Xanthi, by arrangement.
Do you ship outside Greece?
Yes — we also ship to countries within the European Union, with no customs clearance required, as this is an intra-EU shipment.
How much does shipping cost?
Shipping cost is not included in the product price. We'll let you know the shipping cost on request, depending on the destination.
Can I return the product?
Yes. You have a 14-calendar-day right of withdrawal from the date of receipt, with no reason required, under applicable consumer protection law. Return shipping costs are borne by the buyer.
Not sure if you need SLAM or GNSS/RTK? See our guide SLAM LiDAR vs GNSS/RTK.
